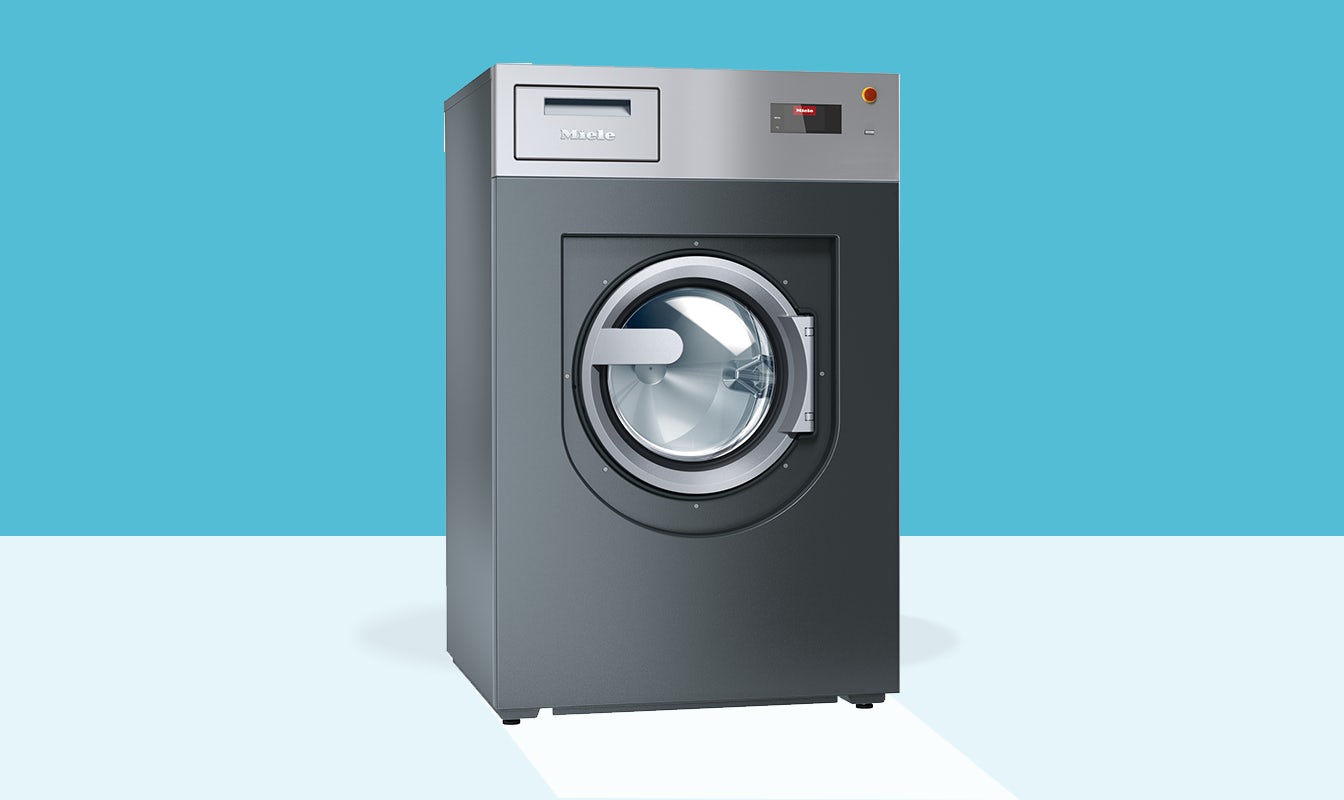

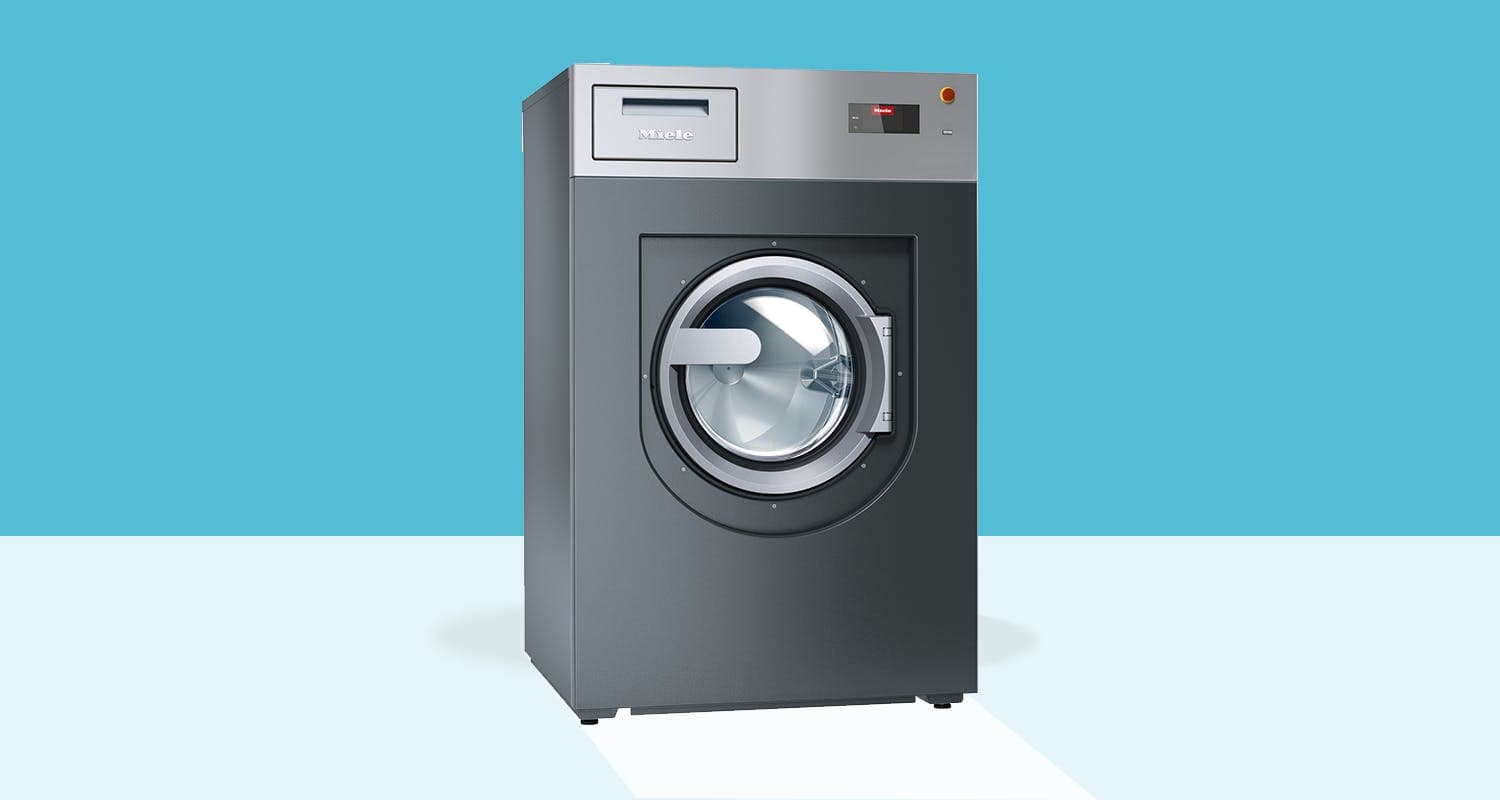

# Miele PWM 520 20kg Commercial Front Load Washer

- **Brand:** [Miele](https://forbespro.co.uk/manufacturer/miele)
- **Category:** [Laundry](https://forbespro.co.uk/laundry) › [Washers](https://forbespro.co.uk/laundry/washers)
- **SKU:** 11779690
- **Model:** PWM 520
- **Price:** On request (POA)

## Specifications

| Specification | Value |
| --- | --- |
| Load capacity | 20 kg |
| Spin Speed | 950 rpm |
| Drum Type | Patented honeycomb drum 2.0 |
| Motor Type | Maintenance-free motor with frequency converter |
| Loading Type | Front loader |
| Electrical Connection | 3N AC 400V 60HZ |
| Phase | 3 |
| Heater Rating | 15.00 kW |
| Total Connected Load | 16.00 kW |
| Fuse Rating | 25 A |
| Heating Type | Electrical |
| Net Weight | 389 kg |
| Connection Options | Payment system (optional), Optical interface for service access, Peak load cut-out/energy mangaement (optional), Connector Box, WLAN, LAN |
| Test Certificate | CE, VDE-EMC, VDE, Splash protection IPX4, WRAS, WEEE, Complies with Machinery Directive 2006/42/EC |
| Dimensions (mm) | H 1450 x W 924 x D 935 |

The Miele PWM 520 delivers exceptional cleaning performance with its 20kg capacity and patented honeycomb drum technology, making it ideal for hotels, care homes, and commercial laundries. Built with Miele's renowned German engineering, this front-loading washer combines efficiency with reliability to handle heavy-duty commercial washing requirements. The maintenance-free motor with frequency converter ensures consistent performance and reduced operational costs.

## Highlights

- 20kg capacity ideal for high-volume commercial laundry operations
- Patented honeycomb drum 2.0 technology for gentle yet thorough cleaning
- Maintenance-free motor with frequency converter for reliable operation
- Fast 49-minute cycle time with hot water connection
- Advanced connectivity options including WLAN and optional payment systems

## Product details

- Load capacity of 20kg with efficient 1:9 load ratio for optimal washing performance.
- Powerful 950 RPM spin speed ensures effective water extraction and reduced drying times.
- Compact dimensions of 924mm width x 935mm depth x 1450mm height for space-efficient installation.
- 15kW heater rating with total connected load of 16kW on 3-phase electrical supply.
- Generous 415mm door opening diameter for easy loading and unloading of large items.
- Robust construction with 389kg net weight ensuring stability during operation.
- 3N AC 400V 60Hz electrical connection with 25A fuse rating requirement.
- Comprehensive safety certifications including CE, VDE, IPX4 splash protection, and WRAS approval.
