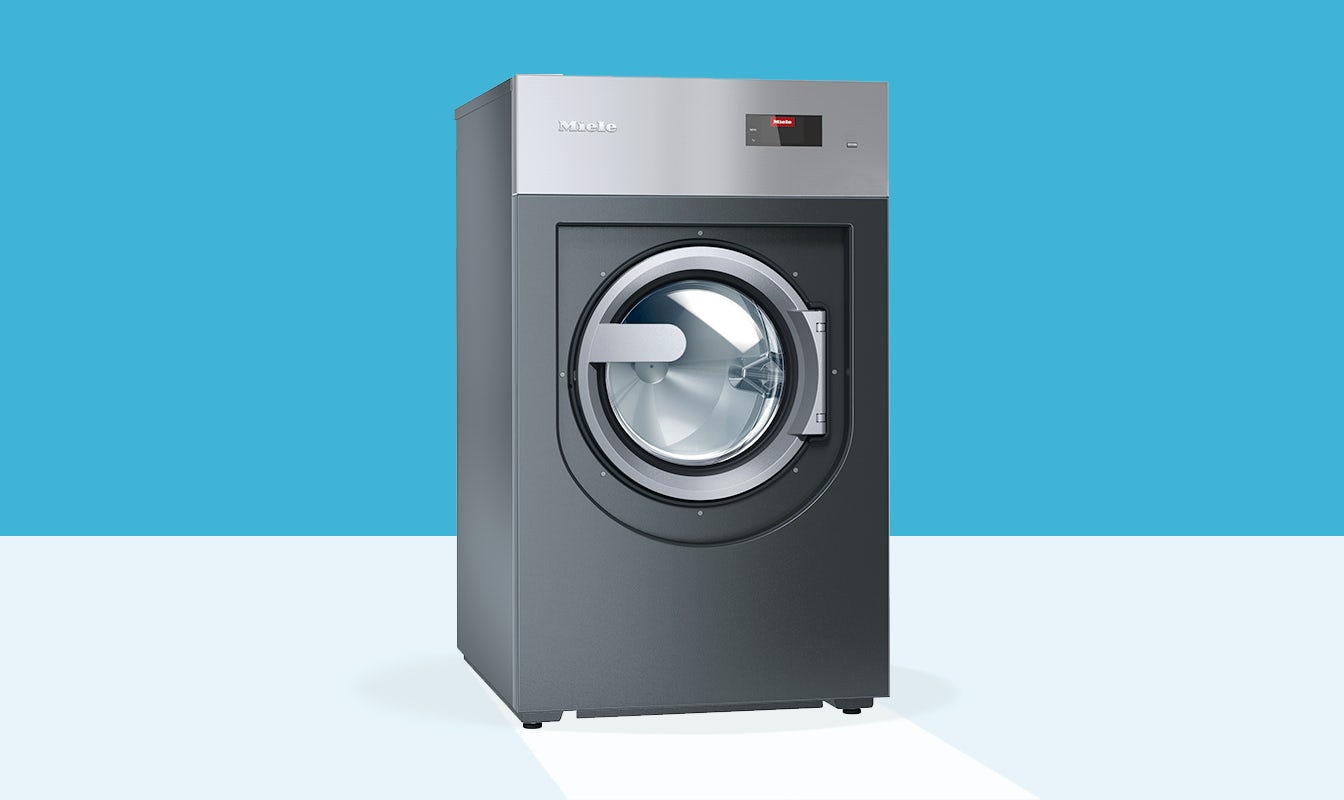

# Miele PWM 514 Mop Star Commercial Washer

- **Brand:** [Miele](https://forbespro.co.uk/manufacturer/miele)
- **Category:** [Laundry](https://forbespro.co.uk/laundry) › [Washers](https://forbespro.co.uk/laundry/washers)
- **SKU:** 11779680
- **Model:** PWM 514 Mop Star
- **Price:** On request (POA)

## Specifications

| Specification | Value |
| --- | --- |
| Load capacity | 14 kg |
| Spin Speed | 1025 rpm |
| Drum Type | Patented honeycomb drum 2.0 |
| Motor Type | Maintenance-free motor with frequency converter |
| Loading Type | Front loader |
| Electrical Connection | 3N AC 400V 60HZ |
| Phase | 3 |
| Heater Rating | 9.00 kW |
| Total Connected Load | 9.60 kW |
| Fuse Rating | 16 A |
| Heating Type | Electrical |
| Net Weight | 276 kg |
| Connection Options | Optical interface for service access, Peak load cut-out/energy mangaement (optional), Connector Box, WLAN, LAN |
| Test Certificate | CE, VDE EMC, VDE, Spash Protection IPX4, WRAS, WEEE, Compiles with Machinery Directective 2006/42/EC |
| Dimensions (mm) | H 1350 x W 799 x D 995 |

The Miele PWM 514 Mop Star delivers exceptional cleaning performance for commercial mop washing with its specialised 14kg capacity and patented honeycomb drum technology. Designed for care homes, hotels, and cleaning contractors requiring reliable mop sanitisation, this front-loading washer ensures thorough cleaning with its 1,025 RPM spin speed. Advanced German engineering and maintenance-free operation make it the ideal choice for high-volume commercial laundry operations.

## Highlights

- 14kg capacity specifically designed for commercial mop washing applications
- Patented honeycomb drum 2.0 technology for superior cleaning performance
- High-speed 1,025 RPM spin for maximum water extraction and faster drying
- Maintenance-free motor with frequency converter for reliable operation
- Quick 49-minute wash cycles for efficient commercial laundry processing

## Product details

- Commercial front-loading washer with 14kg load capacity for high-volume operations.
- Patented honeycomb drum 2.0 design ensures gentle yet thorough cleaning action.
- High-performance 1,025 RPM spin speed maximises water extraction efficiency.
- Maintenance-free motor with frequency converter delivers reliable, long-term operation.
- Compact dimensions of 1,350mm height × 799mm width × 995mm depth for space-efficient installation.
- 9.60kW total connected load with 3-phase electrical connection for commercial power requirements.
- Quick 49-minute wash cycles optimise productivity in busy commercial environments.
- Comprehensive safety certifications including CE, VDE, and IPX4 splash protection rating.
