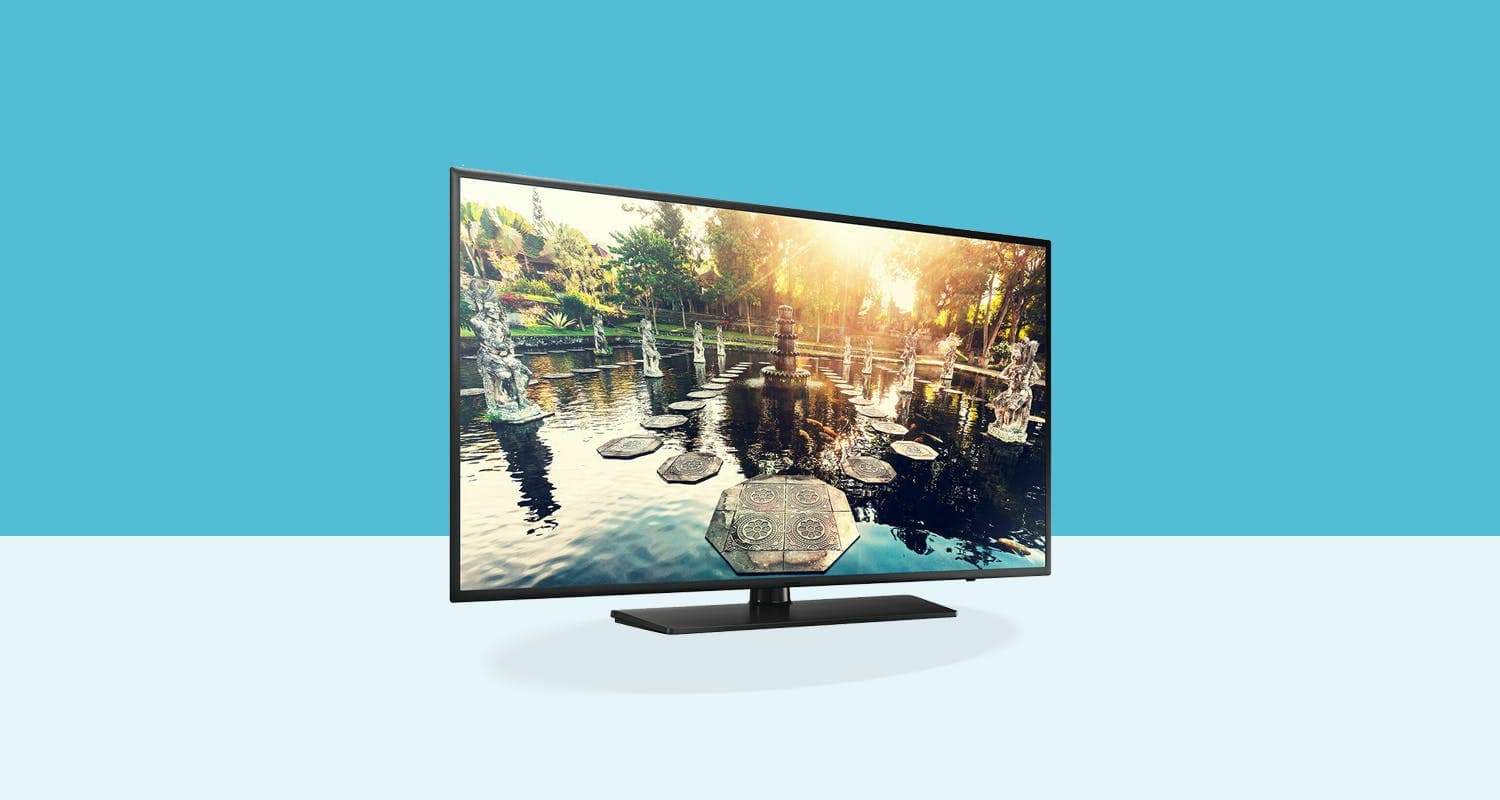

Samsung 43" Commercial Hospitality TV HG43EE690
Show all media
- SKU
- N/A
- Range
- Commercial
- Energy rating
- Energy label powered by NRGKIT
- Climate class
- N/A
- Phases
- 1
- Electrical connection
- AC220-240V 50/60Hz
- Dimensions (mm)
- H 972.9 x W 622 x D 226.5
- Key Features
- Highlights
Simple, secure management of displays through LYNK REACH and LYNK DRM
Ethernet connection for bridging for fast connectivity and program access
Wireless connection between personal devices and displays for expanded content viewing and device mirroring
Voice Control
Samsung SMART View
Get help with leasing, renting or purchasing this product.
Features
- Sports Mode
- All Care Protection
- Samsung 3D
- Processor
- Accessibility
- Digital Clean View
- Auto Channel Search
- Auto Power Off
- BD Wise Plus
- Caption (Subtitle)
- ConnectShare™ (HDD)
- ConnectShare™ (USB 2.0)
- EPG
- Game Mode
- OSD Language
- Picture-In-Picture
- BT HID Built-in
- USB HID Support
- Teletext (TTX)
Video
| Picture Engine | HyperReal |
| Dynamic Contrast Ratio | Mega Contrast |
| Micro Dimming | N/A |
| Active Crystal Color | N/A |
| Wide Color Enhancer (Plus) | |
| Auto Motion Plus | |
| Film Mode |
Audio
| Dolby Digital Plus | |
| Virtual Surround | |
| DTS Codec | |
| Sound Output (RMS) | 20W(L:10W, R:10W) |
| Speaker Type | 2CH(Down Firing w/Bass Reflex) |
| Wallmount Sound Mode | |
| TV SoundConnect | |
| BT Headset Support |
Hospitality features
| Samsung LYNK™SINC Compatibility | |
| Samsung LYNK™ HMS Compatibility | |
| H.Browser Compatibility | |
| Samsung LYNK™REACH (IP) | REACH 4.0 |
| Samsung LYNK™REACH (RF) | REACH4.0 |
| Samsung LYNK™REACH Server Compatibility | |
| Hospitality Home Menu | |
| Bluetooth Music Player (Mobile → TV) | |
| Hospitality Plug&Play (Easy Set-up) | |
| Auto Source Mode | |
| Power on Mode | |
| Hotel Channel List | |
| Channel Menu Display | |
| Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog) | |
| My Channel | |
| Energy Saving Mode(BLU control) | |
| Logo Display with Time Out Setting (BMP/Movie) | |
| Welcome Message | |
| RJ12/IR pass through | |
| External Clock Compatibility | |
| Clock Back Up Supply | |
| External Clock Dimming Control | |
| Software Clock | |
| Multi Code Remote Control | |
| Screwed Battery Cover | |
| Sound bar compatibility | |
| Music Mode (Input : PC/AV/Component/HDMI) | |
| Music Mode BackLight on/off | |
| TTX Clock Update (Analogue) | |
| USB Cloning | |
| Smoovie Compatibility | |
| Soft AP | |
| On/Off Timer (Schedule) | |
| Wake-up Timer (Alarm) | |
| Samsung LYNK™ DRM | |
| Pro:Idiom | N/A |
| bLAN | N/A |
| Security Mode | |
| S/W EPG (Solution EPG) | |
| Wake on LAN (WOL) | |
| IP Over Coax | N/A |

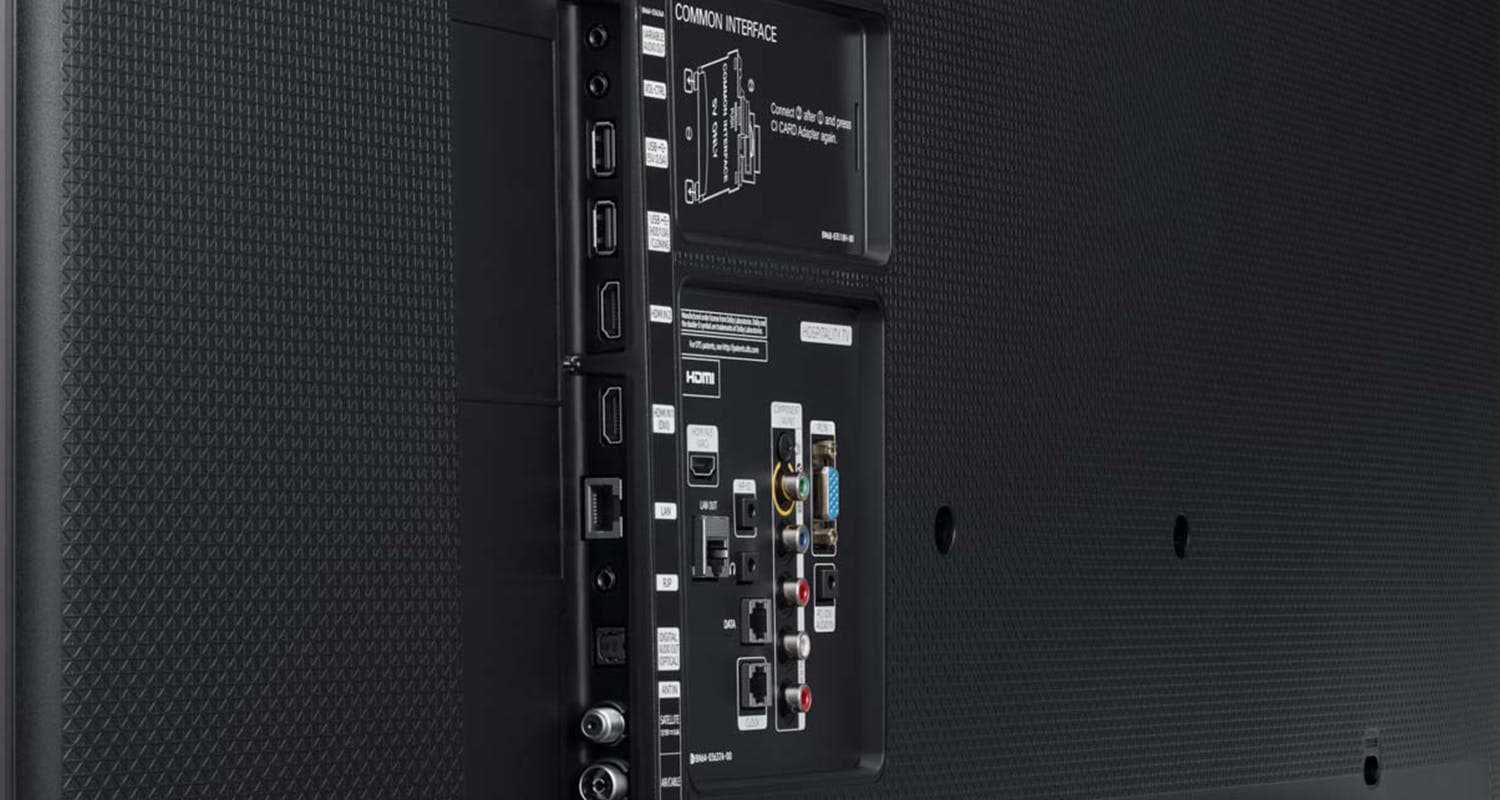

Input and Output
| HDMI (Side/Rear) | 2/1 |
| Anynet+ (HDMI-CEC) | |
| USB (Side/Rear) | 2/0 |
| Pillow Speaker Jack (Side/Rear) | N/A |
| Component In (Y/Pb/Pr) (Side/Rear) | 0/1 |
| Variable Audio Out (Side/Rear) | 1/0 |
| Composite In (AV) (Side/Rear) | 0/1 (Common Use for Component Y) |
| Variable Audio Out Volume Control (Side/Rear) | 1/0 |
| Ethernet (LAN) (Side/Rear) | 1/0 |
| Video Out (Side/Rear) | N/A |
| Headphone (Side/Rear) | 0/1 |
| RJ12 (Side/Rear) | 0/1 |
| Audio Out (Mini Jack / LR) (Side/Rear) | N/A |
| RJP (Remote Jackpack) (Side/Rear) | 1/1 |
| Digital Audio Out (Optical) (Side/Rear) | 1/0 |
| Headphone ID (Side/Rear) | 0/1 |
| F In (Terrestrial / Cable input / Satellite Input) | 1/0 |
| Door-Eye Control (Side/Rear) | N/A |
| Ex-Link ( RS-232C ) | N/A |
| Door-Eye Video In (Side/Rear) | N/A |
| CI Slot (Side/Rear) | 0/1 |
| PC In (D-sub)(Side/Rear) | 0/1 |
| Scart (Side/Rear) | N/A |
| PC/DVI Audio In (Mini Jack)(Side/Rear) | 0/1 |
| HDMI A / Return Ch. Support | |
| Ethernet Bridge (LAN-Out) | 0/1 |
| Wireless LAN Built-in |
| Hospitality Displays HE690 / HE590 Datasheet |
