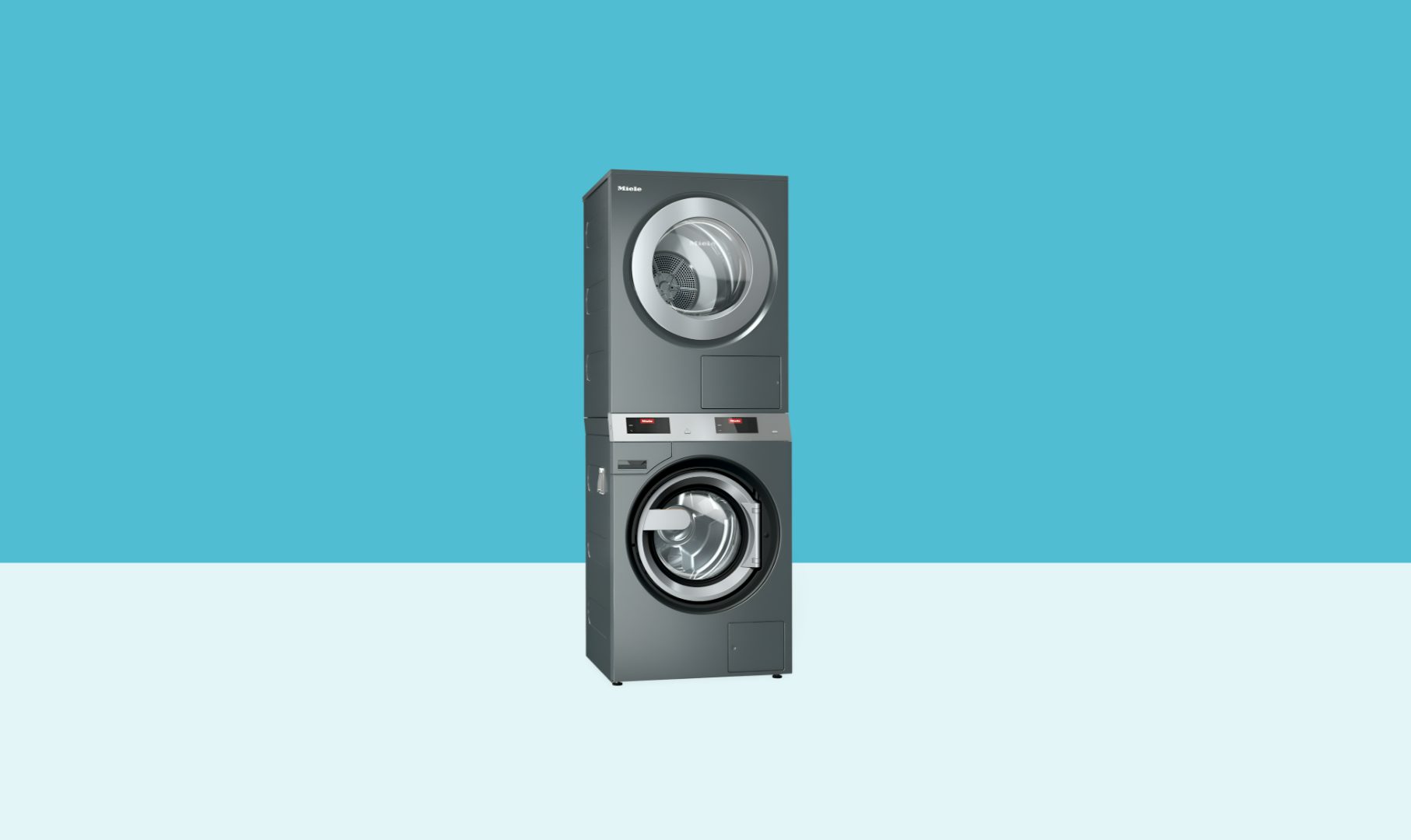

# Miele PDW 909 Electric Washer Dryer Stack

- **Brand:** [Miele](https://forbespro.co.uk/manufacturer/miele)
- **Category:** [Laundry](https://forbespro.co.uk/laundry) › [Stacked Washers & Dryers](https://forbespro.co.uk/laundry/stacked-washers-dryers)
- **SKU:** 11994360
- **Model:** PDW 909 \[EL DP DD\] 25 AMP
- **Price:** On request (POA)

## Specifications

| Specification | Value |
| --- | --- |
| Load capacity | 9 kg |
| Drying System | Exhaust air |
| Electrical Connection | 1N AC 230 V 50 Hz |
| Phase | 1 |
| Heater Rating | 5.2 kW |
| Total Connected Load | 5.5 kW |
| Fuse Rating | 25 A |
| Heating Type | Electric |
| Net Weight | 232 kg |
| Front Colour | Iron grey |
| Connection Options | Payment system (optional), Optical interface for service access, Peak load cut-out/energy management (optional), LAN for washing machine, WiFi, Connector Box |
| Test Certificate | CE, VDE-EMC, VDE, Splash-proof safety rating IPX4, Regulation 4 compliant, UKCA, WEEE, Complies with Machinery Directive 2006/42/EC |
| Dimensions (mm) | H 1940 x W 692 x D 761 |

The Miele PDW 909 delivers exceptional washing and drying performance in a single space-saving unit, perfect for hotels, care homes, and commercial laundries with limited floor space. This robust 9kg capacity stacked system combines Miele's renowned reliability with advanced connectivity options, ensuring consistent results and efficient operation for demanding professional environments.

## Highlights

- 9kg capacity washer and dryer in one compact stacked unit
- Electric heating with 5.2kW heater rating for efficient drying
- Advanced connectivity including WiFi and LAN integration
- IPX4 splash-proof rating for reliable operation in commercial environments
- CE and UKCA certified with comprehensive safety compliance

## Product details

- The unit features a 9kg maximum load capacity for both washing and drying cycles.
- Electric heating system operates at 5.2kW heater rating with 5.5kW total connected load.
- Single-phase electrical connection requires 1N AC 230V 50Hz power supply with 25 amp fuse rating.
- Compact dimensions measure 1940mm height, 692mm width, and 761mm depth.
- Iron grey front colour provides a professional appearance suitable for commercial settings.
- Exhaust air drying system ensures effective moisture removal.
- Net weight of 232kg provides stability during operation.
- Optional payment system integration available for self-service applications.
