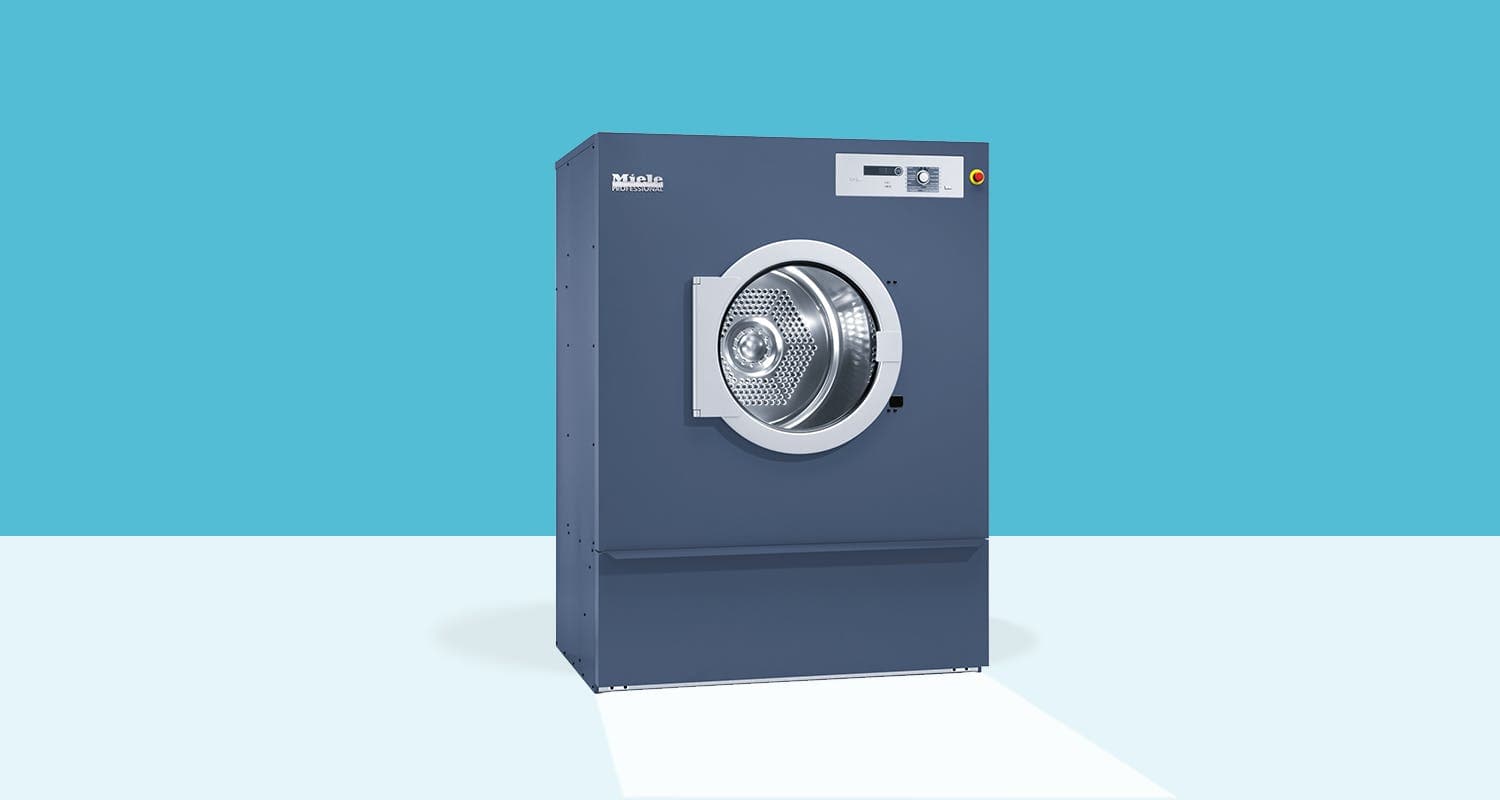

# Miele PT 8503 Professional Heat Pump Dryer

- **Brand:** [Miele](https://forbespro.co.uk/manufacturer/miele)
- **Category:** [Laundry](https://forbespro.co.uk/laundry) › [Dryers](https://forbespro.co.uk/laundry/dryers)
- **SKU:** 07588980
- **Model:** PT 8503
- **Price:** On request (POA)

## Specifications

| Specification | Value |
| --- | --- |
| Load capacity | 13 kg |
| Drying System | Heat pump |
| Drum Type | Stainless steel honeycomb drum |
| Electrical Connection | 3N AC 380-415V 50HZ |
| Heater Rating | 24,40-29,40 kW |
| Total Connected Load | 25,90-30,90 kW |
| Fuse Rating | 50 A |
| Heating Type | Heat pump with CleanStream |
| Net Weight | 50 kg |
| Control System | Profitronic B Plus |
| Connection Options | Payment system (optional), Serial interface RS 232 (optional), Optical interface for service access, Peak load cut-out/energy management (optional) |
| Test Certificate | CE, VIDA, Splash-proof safety rating IPX4, DVGW gas, WEEE, Complies with Machinery Directive 2006/42/EC |
| Dimensions (mm) | H 1766 x W 1390 x D 1108 |

The Miele PT 8503 delivers exceptional energy efficiency with its advanced heat pump technology and CleanStream system, reusing up to 60% of warmed air to dramatically reduce operating costs. Perfectly suited for high-volume laundries in hospitals, care homes, and hotels, this 13kg capacity dryer handles demanding workloads with ease. The patented honeycomb drum and intelligent moisture sensors ensure optimal fabric care whilst maximising throughput efficiency.

## Highlights

- Advanced heat pump technology reuses up to 60% of warmed air for significant energy savings
- 13kg capacity with maximum load capability of 16kg for high-volume commercial operations
- Patented stainless steel honeycomb drum provides gentle fabric care and protection
- Intelligent residual moisture sensors automatically adjust drying time for optimal results
- Profitronic B Plus control system with optional connectivity for payment and energy management

## Product details

- Commercial heat pump dryer with 13kg standard capacity and 16kg maximum load capability.
- Advanced CleanStream heat pump technology delivers exceptional energy efficiency and cost savings.
- Robust stainless steel honeycomb drum design ensures gentle treatment of all fabric types.
- Three-phase electrical connection (3N AC 380-415V 50Hz) with 25.90-30.90kW total connected load.
- Compact footprint measuring 1766mm height × 1390mm width × 1108mm depth for space-efficient installation.
- IPX4 splash-proof safety rating ensures reliable operation in demanding commercial environments.
- Profitronic B Plus control system with optical service interface and optional connectivity options.
- Comprehensive safety certifications including CE marking and compliance with Machinery Directive 2006/42/EC.
